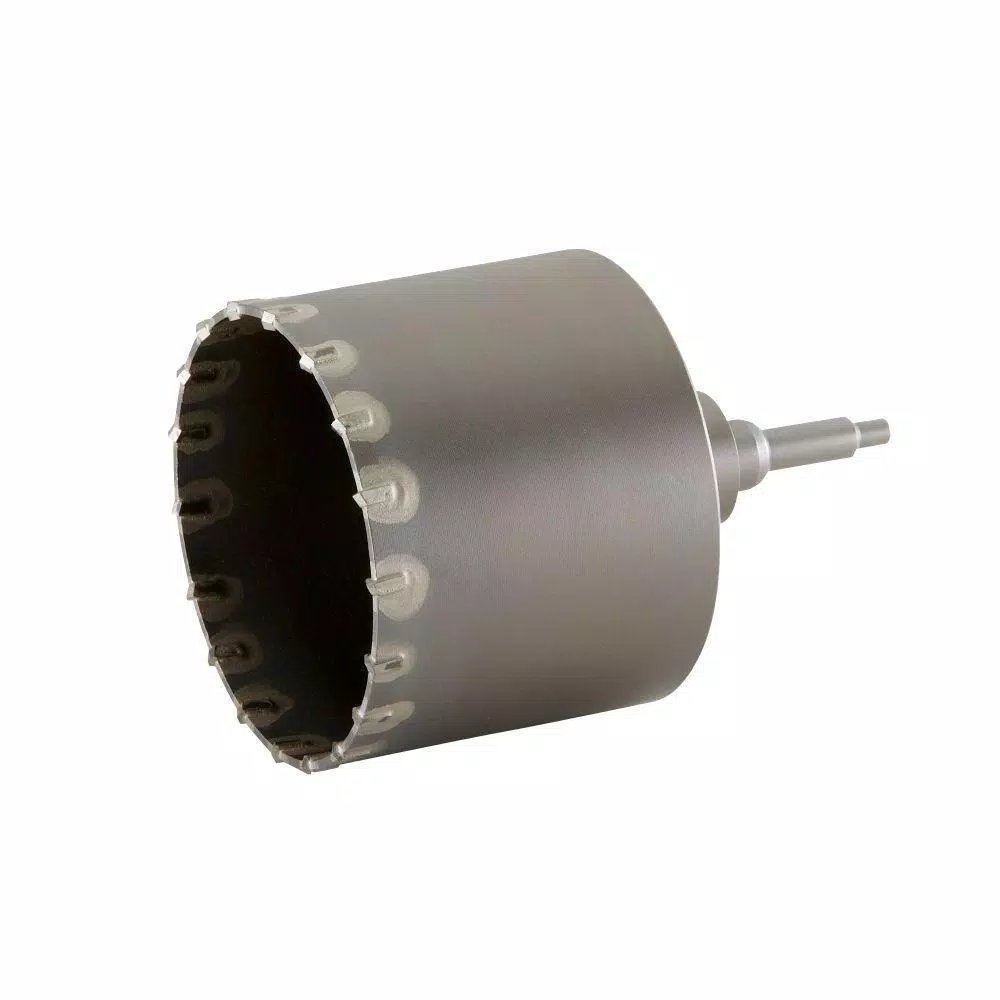

Drill Bits Milwaukee 2-1/2 In. X 2-13/16 In. Thin Wall SDS Plus Core Bit

Original price was: $129.00.Current price is: $90.30.

The Milwaukee 2-1/2 in. x 2-13/16 in. Thin Wall SDS Plus Core Bit is recommended for positioning and starting 1-1/4 in. hole and larger. This thin wall construction is ideal for smaller hammers and newer concrete.

Quality You Can Count On

Prompt service, every time.

Quality Products, Quality Service

Effortless Shopping, Quality Products

Milwaukee’s Carbide Tipped Core Bits are ideal for drilling large holes where the depth is relatively shallow. The Core Bit cuts a kerf only. The usable depth of Thin Wall Core Bits ranges from 2-13/16 in. to 3-3/16 in. The Thin Wall construction is ideal for smaller hammers and newer concrete. The inside core must be removed by the operator before deeper drilling can be accomplished. Multiple extensions and adapters are available to allow for deeper holes to be drilled. The appropriate drive shank must be used to drive the Core Bit. Use of Center Pin and Guide Plate is recommended for positioning and starting a 1-1/4 in. hole and larger. Use of Center Pin and Guide Plate is not recommended for positioning and starting a 1-1/8 in. hole or smaller. Milwaukee Carbide Tipped Core Bits are available from 1 in. to 6 in. Dia. Includes Core Bit Centering Pin and Guide Plate.

2-1/2 in. Dia
Usable cutting depth 3 in.
Thin wall
Use with SDS core bit shank 48-03-3555 (8 in.) or 48-03-3561 (12 in.)

Weight	1.31 lbs
Drill Bit Type(s) Included	Coring Bit
Shank Style	SDS Plus
Shank Diameter	3/4 in
Self-Feeding	No
Model	48-20-5040
Material Application	Brick, Concrete
Individual/Set	Individual
Drill Bit Type	Coring Bit
Dimensions	3.50 × 3.50 × 7.32 in
Connection End Type	1 1/4 in. – 7 in.
Bit Material	Carbide
Bit Length (in.)	2.5
Bit Diameter	2-1/2 in
Assembled Width (in.)	3.5 in
Assembled Height (in.)	7.32 in
Assembled Depth (in.)	3.5 in
Tools Product Type	Power Tool
